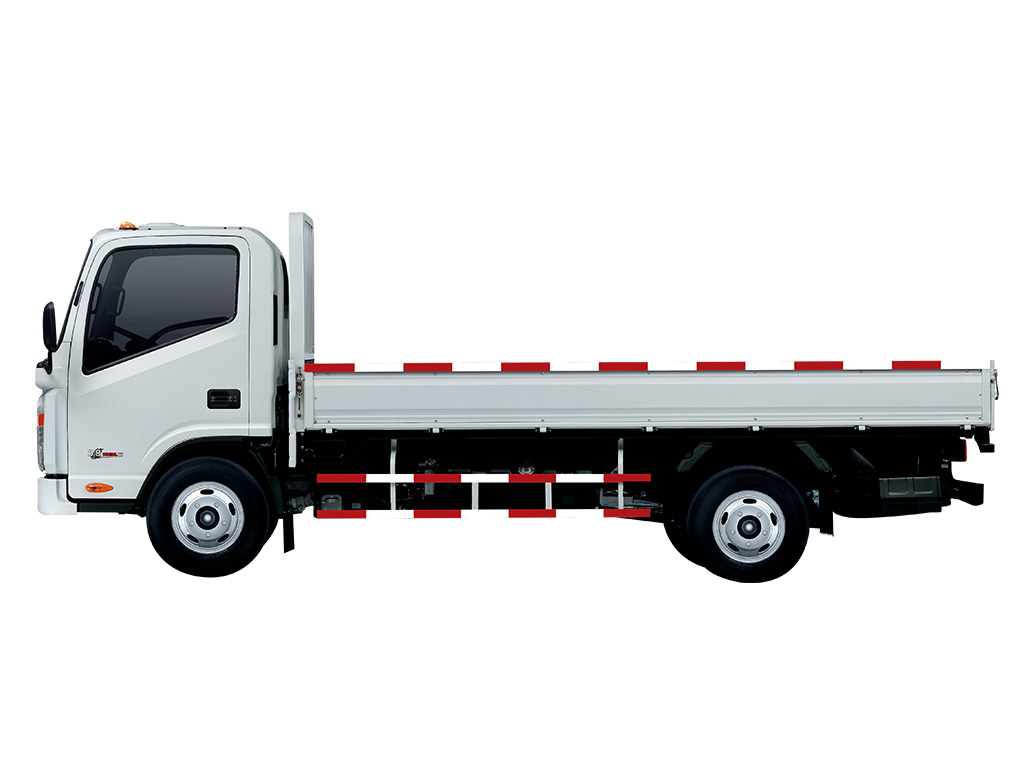

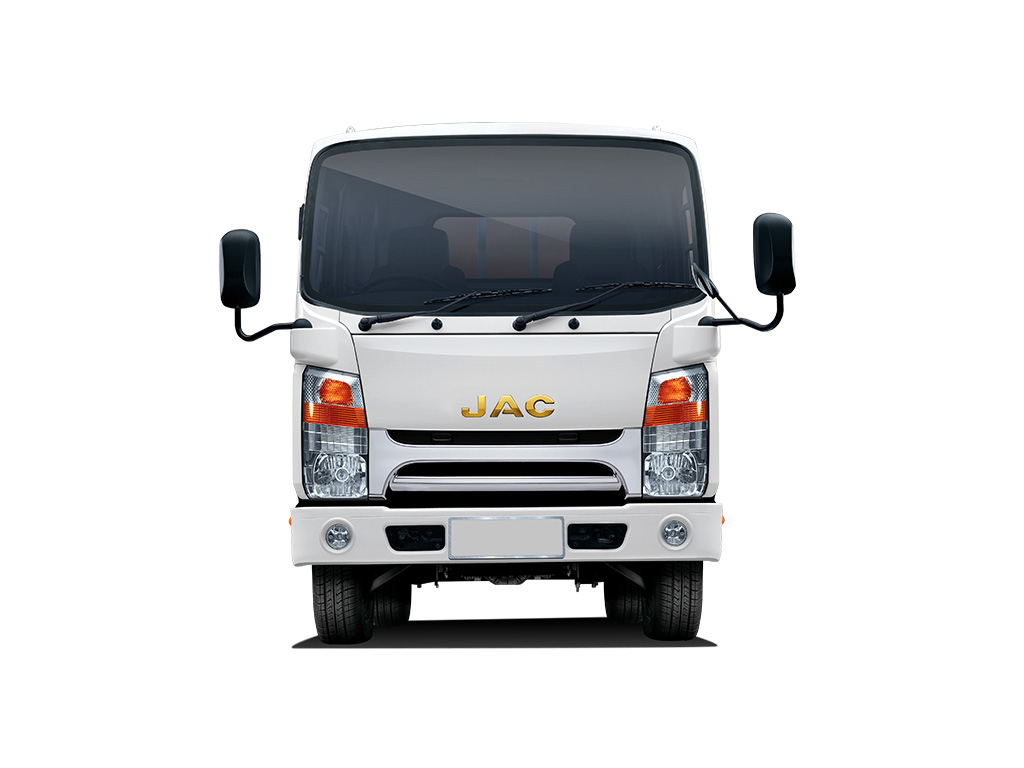

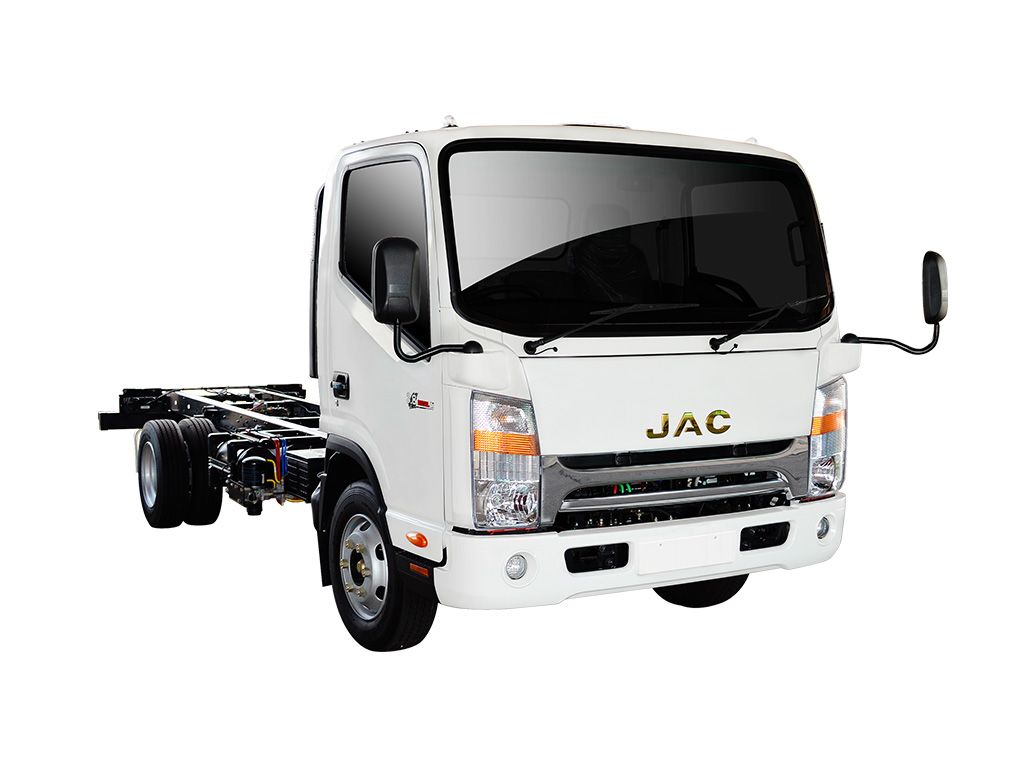

| JAC HF1061 | |||||
| SPECIFICATION | |||||
| BASIC DESCRIPTION | |||||
| Model | HFC1061K10PN38 | HFC1061K10P45 | |||
| Emission Standard | Euro III | ||||
| Cabin / Seating Capacity | Single/3 | ||||
| ENGINE | |||||
| Model | CUMINS ISF3.8s | ||||
| Type | Common Rail | ||||
| Displacement (cc) | 3757 | ||||
| Compression Ratio | 17.2 | ||||
| Max Power (kw/rpm) | 145/2600 | ||||
| Rated Torque (Nm/r/min) | 450/1300-1700 | ||||
| TRANSMISSION | |||||
| Model | LC6T55 | ||||
| Gear Position | R 2 4 1 3 5 |
||||
| PERFORMANCE | |||||
| Max Speed (km/h) | 115 | ||||
| Max Gradeability (%) | 46 | ||||
| BRAKES | |||||
| Brake System | Air Brakes | ||||
| TYRES | |||||
| Tyre Size | 8.25 16/225/75 R17.5 | ||||
| DIMENSIONS | |||||
| Overall Dimensions (mm) (L*W*H) | 6980/2170/2300 | 7927/2170/2300 | |||
| Cargo Dimensions (mm) (L*W*H) | 5230/2010/550 | 6227/2010/550 | |||
| Wheelbase (mm) | 3845 | 4500 | |||
| Tread (Front/Rear) (mm) | 1680/1525 | ||||
| MASS DATA | |||||
| Curb Weight (kg) (BTM) | 4080 | ||||
| Max Load Capacity (kg) | 6320 | ||||
| Gross Vehicle Weight (kg) (BDM) | 10400 | ||||
| Min Turing Radius (m) | 6.8 | 9 | |||
| CONFIGURATION | |||||
| Air Conditioner | ○ | ||||
| Power Steering | √ | ||||
| Pre-Heater | √ | ||||
| Wind Deflector | ○ | ||||
| Side Bumper | √ | ||||
| Rear Bumper | √ | ||||
| Power Assist of the Clutch | √ | ||||
| Digital Radio | √ | ||||
| Exhaust Braking | √ | ||||
| USAGE | |||||
 Box Van
 Concrete Mixer
 Cargo Truck
 Curtain Side Truck
 Tanker
 Cargo Crane
 Car Carrier
 Refrigerated Truck
 Dump Truck
 Garbage Truck
 Roll On Roll Off
 Aerial Platform
|
